Efficient Spring Forming Machine With Max Fourteen Axes Power Supply 380V
| Model | HYD-40T-12A |
| Axis Count | twelve axis |
| Wire Size Range | low carbon steel:2-6mm |
| high-carbon steel:1-4mm |
| Lead rail | distance of 100mm |
| Wire feeding count | 4 pairs |
| Max Feeding speed | 100m/min |
| Maximum error | ± 0.05mm(length) |
| Control system+decoiler | 1 set |
| Servo motor power | 27KW |
| Reducer | 11pcs |
| Minimum length of ange | 4 times wire diameter |
| Machine size | 1920*1200*1820mm |
| Machine weight | 3000kg |
Machine Details
1. Equipped with the computer-controlled system imported from Taiwan and servo motor imported from Japan.
2. The parameters such as major diameter and angle can be modified at any time according to the working status displayed on the fluorescence screen.

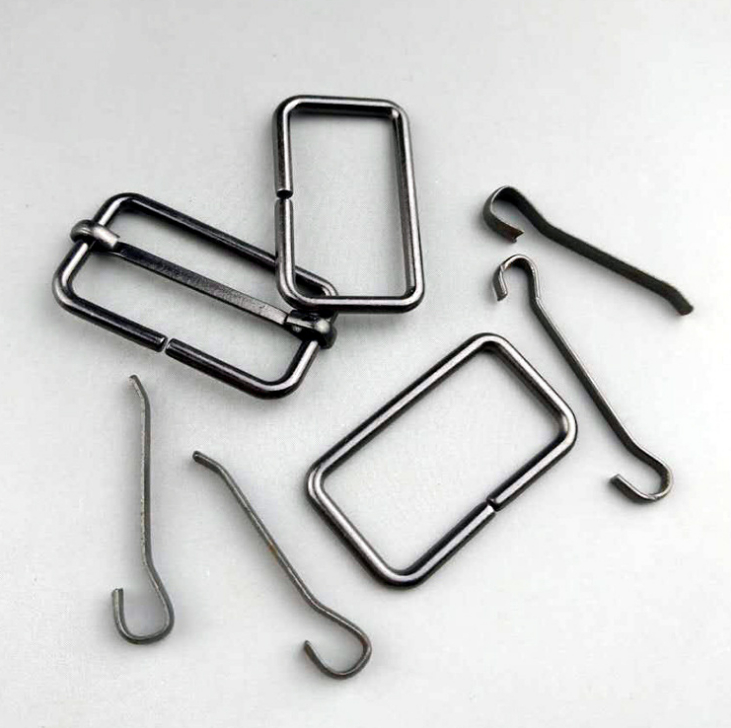

3. It is suitable for producing double torsion spring, straight spring, pagoda-shaped compression spring, rectangle spring, swirl spring and other different spring and special-shaped spring etc.
Machine Manufacturering Picture
Packaging & Delivery
---Packaging Details in standard sea-worthy 2 plywood-cases to pack this machine,
Delivery Port
---Shenzhen or other specially designated port.
After-sale service
---Free installation & training service in HYD company.
---Always provide customers efficient on-line response.
Can you provide technical support?
---HYD provide free technical support,installation and training of machine.
How do you support when machine goes wrong.
---Talk with HYD specialist online by telephone, Skype, WhatsApp etc and give high-efficient solution for the incorrect operation or change the consumable parts.
---HYD specialist will teach you how to change the parts during the training time
